C6251 Ordinary Lathe Machine Ordinary Lathe Center Lathe Machine

  • >=1 Sets
    $9,500.00
Max. Swing Diameter (mm):
510mm
Spindle bore:
80mm
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 100 >100
Est. Time(days) 30 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Max. Swing Diameter (mm):
510
Max. Length of Workpiece (mm):
2000
Range of Spindle Speed(r.p.m):
25 - 1600 r.p.m
Machining Capacity:
Medium duty
Spindle Bore(mm):
80
Width of bed (mm):
350
Max. Turned Length (mm):
2000 mm
Type:
HORIZONTAL
Spindle Motor Power(kW):
4
Place of Origin:
Shandong, China
Brand Name:
DTMC
Model Number:
C6251
Voltage:
380V
Dimension(L*W*H):
2250*1130*1540
Certification:
CE
Weight (KG):
3070 KG
Warranty:
1 YEAR
After-sales Service Provided:
Online support, Video technical support, Free spare parts
Key Selling Points:
Multifunctional
Applicable Industries:
Machinery Repair Shops, Manufacturing Plant, HOME USE, Construction works , Energy & Mining, Advertising Company
After Warranty Service:
Online support, Spare parts
Local Service Location:
Egypt, canada, turkey, UNITED KINGDOM, United States, ITALY, france, GERMANY, VIET NAM, philippines, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, japan, malaysia, Australia, Morocco, kenya, argentina, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, NIGERIA, uzbekistan, Tajikistan
Showroom Location:
Egypt, canada, turkey, UNITED KINGDOM, United States, ITALY, france, GERMANY, VIET NAM, philippines, brazil, peru, SAUDI ARABIA, indonesia, pakistan, INDIA, Mexico, RUSSIA, spain, Thailand, Morocco, kenya, argentina, CHILE, UAE, Colombia, algeria, Sri Lanka, Romania, BANGLADESH, south africa, KAZAKHSTAN, UKRAINE, kyrgyzstan, NIGERIA, uzbekistan, Tajikistan, japan, malaysia, Australia
Marketing Type:
Ordinary Product
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Warranty of core components:
1 YEAR
Core Components:
Bearing, GEAR
Swing over bed:
510mm
Swing of gap:
738mm
Center height:
1135mm
Width of bed:
350mm
Spindle nose:
D1-8
Spindle bore:
80mm
Taper of spindle bore:
No.7Morse
Range of spindle speed:
25-1600r/min
Max.travel of compound rest:
130mm
Travel of tailstock sleeve:
180mm
Supply Ability
Supply Ability:
100 Set/Sets per Day
Packaging & Delivery
Packaging Details
Standard export package,custom suffocating free.
Port
Qingdao Shanghai
Picture Example:
package-img
package-img
Lead Time :
Quantity(Sets) 1 - 100 >100
Est. Time(days) 30 To be negotiated
Video Description
Products Description
Product Paramenters
Features: Whole or segregate foot stand for optional. The guide way and all gears in the headstock are hardened and precision ground. The spindle system is high rigidity and accuracy. The machines have powerful headstock gear train, high rotating accuracy and smooth running Feature: Surface hardening and precision grinding of the bed guide. The spindle bearing adopts precision tapered roller bearings. The spindle gear adopts high quality steel surface quenching and fine grinding. The unloaded saddle provides a larger rotary diameter. A pedal brake device. The structure of the patented delivery box.

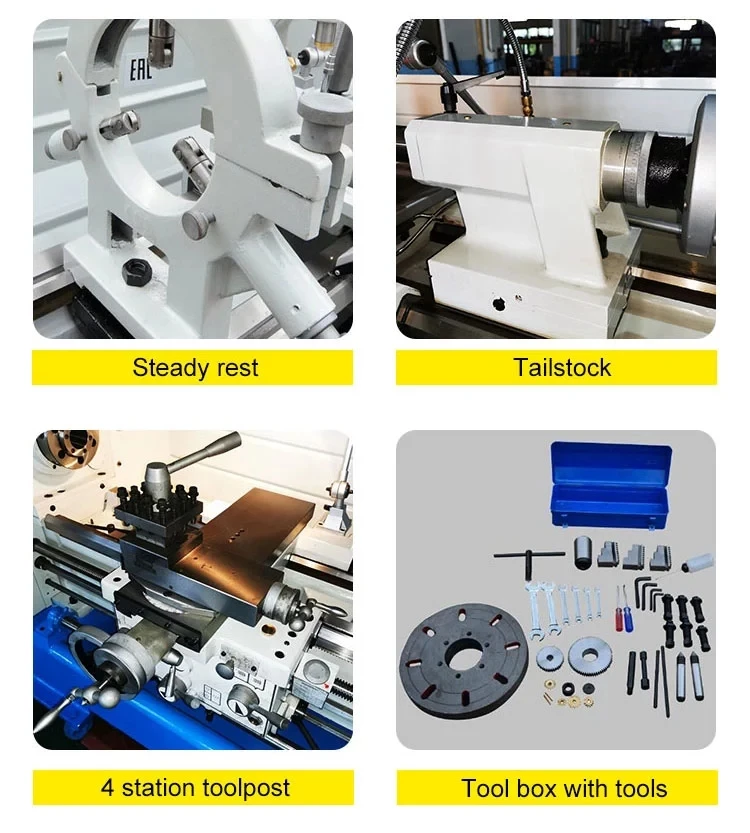

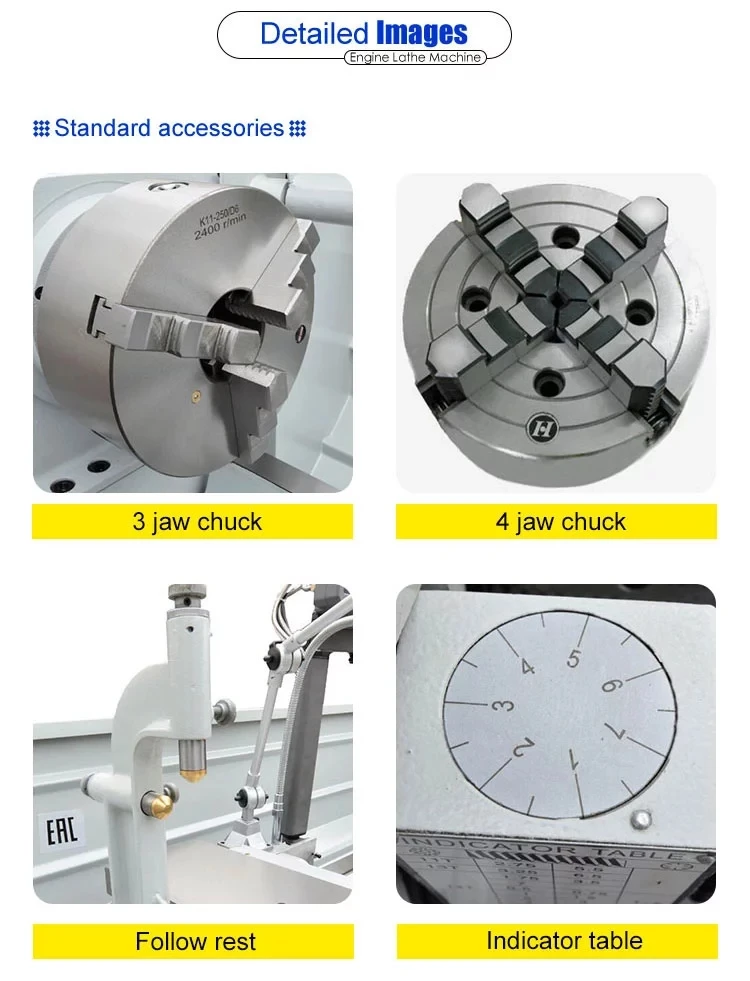

STANDARD ACCESSORIES Three Jaw Chuck and Adapter Oil Gun Four Jaw Chuck and Adapter Thread Chasing Dial Face Plates Operation Manual Steady Rest One set of Wrenches Follow Rest MT 7/5 Sleeve and MT 5 Center SPECIAL ACCESSORIES Driving Plate Quick Change Tool Post  Taper Tuming Attachment
Model
C6251*1500/2000/3000
Swing over bed
510mm
Swing of gap
738mm
Distance between centers
1500mm
2000mm
Center height
1135mm
Width of bed
350mm
Spindle nose
D1-8
Spindle bore
80mm
Taper of spindle bore
No.7Morse
Range of spindle speed
12changes25-1600r/min
Max.travel of compound rest
130mm
Leadscrew pitch
6mmOr4T.P.L
Max.section of tool
25*25mm
Travel of tailstock sleeve
180mm
Power of main motor
7.5kw(10HP)3PH
Power of coolant pump
0.1kw(1/8HP),3PH
Overall dimension(L*W*H)
2900*1120*1430mm
3400*1120*1430mm
Packing size(L*W*H)
2960*1130*1820mm
3460*1130*1820mm
Net weight/Gross weight
2335/2700kg
2685/3070kg
Details Images
Product packaging
